| Other Related Documents | STD10NF10 View All Specifications |
|---|---|
| Online Catalog | N-Channel Standard FETs |
| Standard Package | 2,500 |
| Other Names | 497-3153-2 |
| Manufacturer | STMicroelectronics |
| Series | STripFET™ II |
| Packaging | |
| FET Type | MOSFET N-Channel, Metal Oxide |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Tc) |
| Rds On (Max) @ Id, Vgs | 130 mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) @ Vgs | 21nC @ 10V |
| Input Capacitance (Ciss) @ Vds | 460pF @ 25V |
| Power - Max | 50W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |

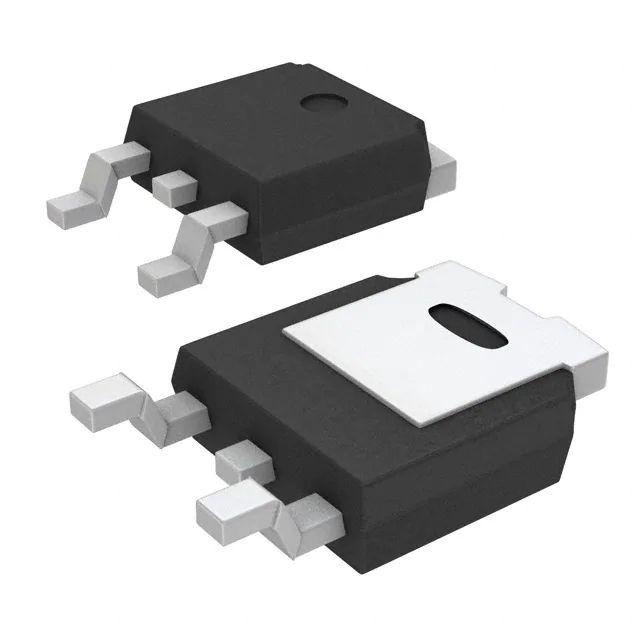

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | D-Pak |
